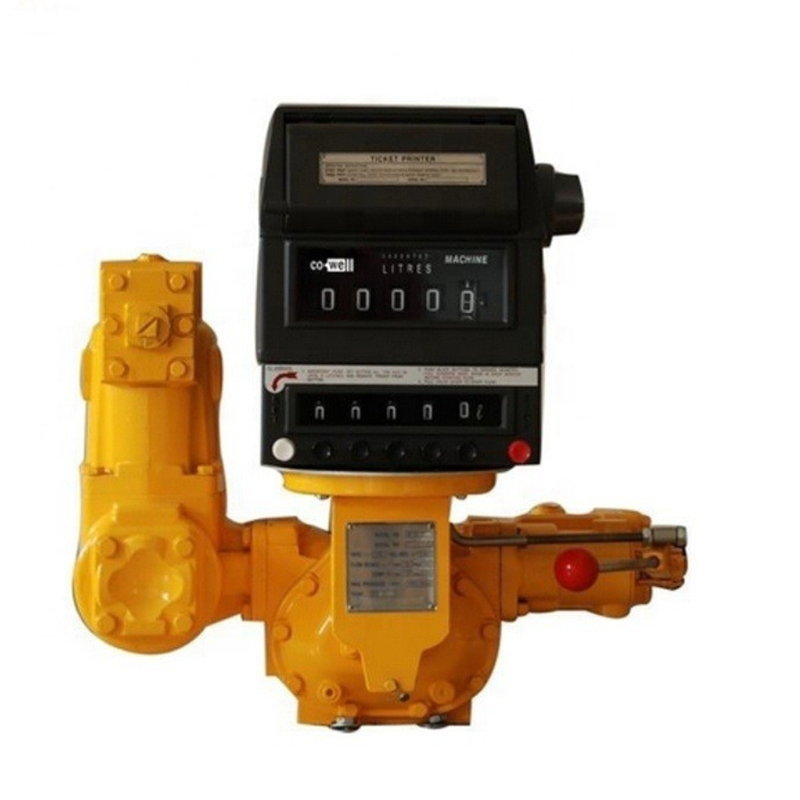

M-50-NX-1 PD Flow Meter with Mechanical Register, Preset Register, Strainer, Air Eliminator & Ticket Printer

M-50-NX-1 PD Flow Meter with Mechanical Register, Preset Register, Strainer, Air Eliminator & Ticket Printer

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: CE

Model Number: M-50-NX-1

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 5-15 Working days

Payment Terms: T/T, L/C

Get Best Price
Contact Now
Specifications
Highlight:

m-50-nx-1 pd flow meter

,

pd flow meter odm

,

odm displacement flow meter

Warranty:
2 Years
Customized Support:
OEM;ODM
Diameter:
50mm/2"
Flow Range:
38-380L/Min Or 55-550L/Min
Max. Pressure:
10Bar/150PSI
Application:
Fuel Oil, Diesel, Lpg Etc
Material:
Aluminum
Warranty:
2 Years
Customized Support:
OEM;ODM
Diameter:
50mm/2"
Flow Range:
38-380L/Min Or 55-550L/Min
Max. Pressure:
10Bar/150PSI
Application:
Fuel Oil, Diesel, Lpg Etc
Material:
Aluminum
Description
M-50-NX-1 PD Flow Meter with Mechanical Register, Preset Register, Strainer, Air Eliminator & Ticket Printer



Characteristics



  • Excellent stepless adjusting mechanism allows a micro adjustment of the meter
  • High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Low pressure loss, a true gravity flow meter
  • Accuracy regardless of pressure fluctuations, temperature variation, viscosity
  • Choice of aluminum, cast iron and stainless steel materials of construction





Technical Data



Model M-40-1 M-50-1 M-50H-1 M-80-1 M-80H-1 M-100-1 M-100H-1 M-150-1 M-150H-1
Size 40mm /1.5" 50mm / 2 " 80mm / 3 " 100mm / 4 " 150mm / 6 "
Flow Range
(L/Min)
25-250 38-380 55-550 75-750 115-1150 130-1300 170-1700 225-2250 300-3000
Volume/Rev. 0.309L 0.681L 1.839L 5.102L 9.507L
Max.Pressure 10Bar/150PSI 25Bar/350PSI
Accuracy ±0.2%
Repeatability ≤0.05%
Standard Measurement Liter / US Gallon/IMP Gallon
Viscosity 30SSU~1,500,000SSU

Note:4"&6" flange available for M-150/6" Meter.







Constructure



M-40-1 Positive Displacement Flow Meter 0





M-40-1 Positive Displacement Flow Meter 1



M-40-1 Positive Displacement Flow Meter 2

M-40-1 Positive Displacement Flow Meter 3





M-40-1 Positive Displacement Flow Meter 4
