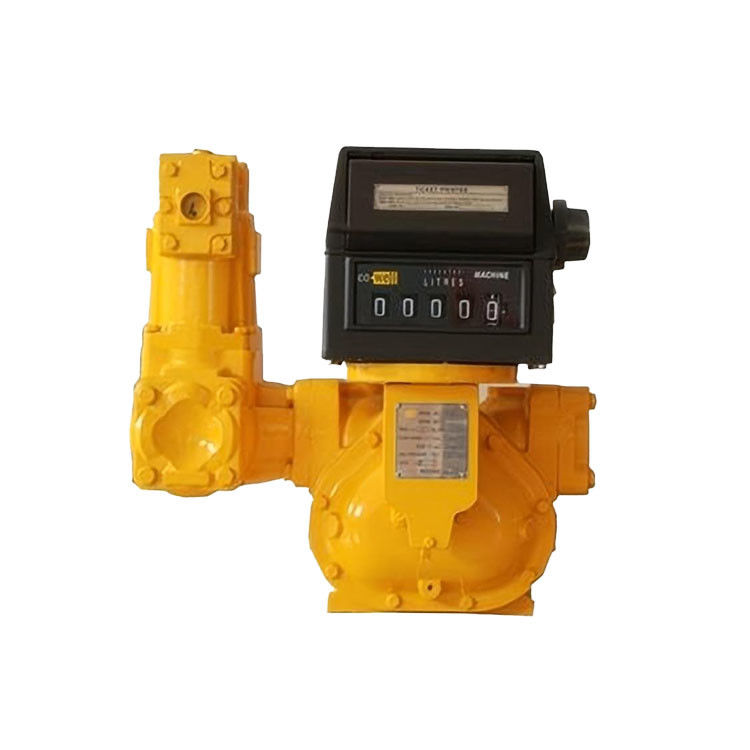

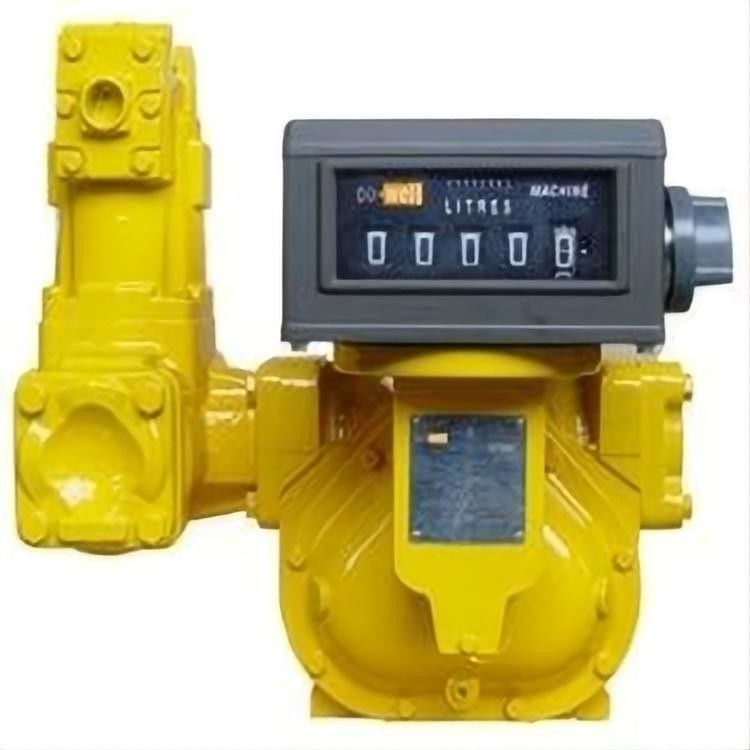

M-80-1 PD Flow Meter for Refueling

M-80-1 PD Flow Meter for Refueling

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: CE

Model Number: M-80-1

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Hard Carton

Delivery Time: 5-10 working days

Payment Terms: By T/T; LC

Get Best Price
Contact Now
Specifications
Highlight:

Gasoline Refueling

,

Gasoline Refueling

,

Accurate Flow Meter for Oil and Gas

Warranty:
2 Years
Customized Support:
OEM, ODM, OBM
Diameter:
80mm/3"
Flow Rate:
75-750L/min Or 115-1150L/Min
Volume/Rev:
1.839L
Accurate:
±0.2%
Pressure:
10Bar/150PSI
Viscosity:
30SSU-1,500,000SSU
Warranty:
2 Years
Customized Support:
OEM, ODM, OBM
Diameter:
80mm/3"
Flow Rate:
75-750L/min Or 115-1150L/Min
Volume/Rev:
1.839L
Accurate:
±0.2%
Pressure:
10Bar/150PSI
Viscosity:
30SSU-1,500,000SSU
Description
M-80-1 PD Flow Meter for Refueling


Characteristics


  • Excellent stepless adjusting mechanism allows a micro adjustment of the meter
  • High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Low pressure loss, a true gravity flow meter
  • Accuracy regardless of pressure fluctuations, temperature variation, viscosity
  • Choice of aluminum, cast iron and stainless steel materials of construction



Technical Data


  Model

M-40-1

M-50-1

M-50H-1

M-80-1

M-80H-1

M-100-1

M-100H-1

M-150-1

M-150H-1

  Size

40mm /1.5"

50mm / 2 "

80mm / 3 "

100mm / 4 "

150mm / 6 "

  Flow Range
  (L/Min)

25-250

38-380

55-550

75-750

115-1150

130-1300

170-1700

225-2250

300-3000

  Volume/Rev.

0.309L

0.681L

1.839L

5.102L

9.507L

  Max.Pressure

10Bar/150PSI

25Bar/350PSI

  Accuracy

±0.2%

  Repeatability

≤0.05%

  Standard Measurement

 Liter / US Gallon/IMP Gallon

  Viscosity

30SSU~1,500,000SSU

 Note:4"&6" flange available for M-150/6" Meter.
