CWK50J××× Y Series Fuel Dispenser

Name: CWK50J××× Y Series Fuel Dispenser
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: CWK50J××× Y
Price: 450.00 USD
Availability: InStock

Product Details

Brand Name: COWELL

Model Number: CWK50J××× Y

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 40 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                    Customized Fuel Dispenser, Fuel Dispenser Oil Filling, Customized Automatic Fuel Dispenser


Flow Rate:

5-50L/Min

Product:

One Product Or Two Product

Flow Rate:	5-50L/Min
Product:	One Product Or Two Product

Description

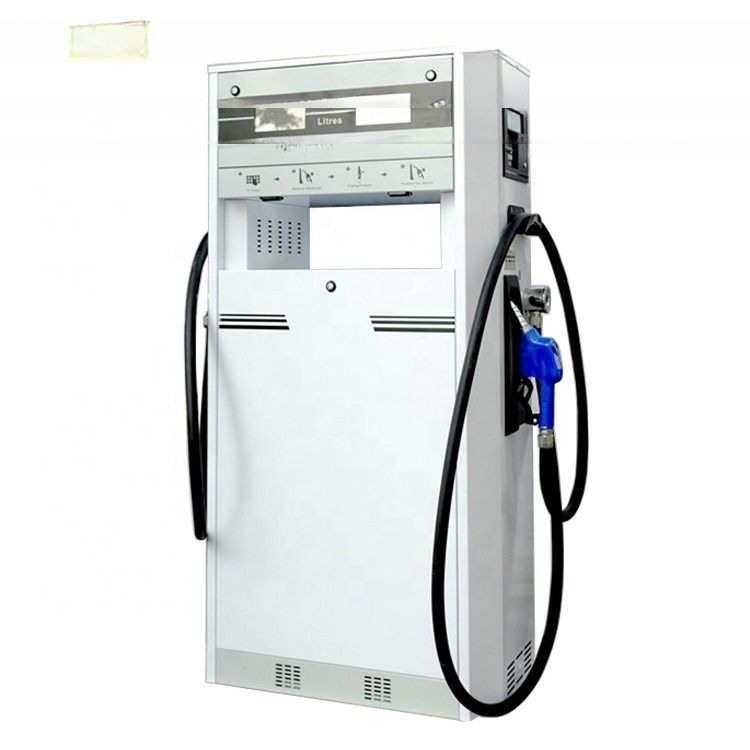

CWK50J××× Y Series Fuel Dispenser

Technical Specification

Accuracy	±0.3%
Delivery Rate	5 ~ 50L/min; 5 ~ 90L/min
Vacuum	≥ 0.06 MPa
Register Range	0.00~999999.99 L
Totalizer Range	0.00~9999999999.99 L
Pre-settting Range	1.00~99999L
Rating Power	0.75KW
Power	AC380±20% 50/60±1Hz AC220 ±20% 50/60±1Hz
Ex-proof Motor	AC380±20% 50/60Hz 0.75Kw AC220 ±20% 50/60Hz 0.75Kw
Ambient Humidity	30%－90%
Temperature	-40℃~ 60℃

Stanard Components

Components	Model
Flow Meter	MJ-65 Flow Meter
Pump	ZYB-50 Vane Pump
Ex-proof Motor	AC380V±20% 50Hz
Hose	¾” 4M
Nozzle	TD-20A Automatic Nozzle

Option

Flow Meter & Pump	MJ-55 Flow Meter & ZCH-50 Gear Pump MJ-85S Flow Meter & ZCB-90 Gear Pump MJ-85S Flow Meter & QYB-240R Submersible Pump
Ex-proof Motor	AC220V±20% 50Hz or 60Hz
Nozzle	XIDE-80 Automatic Nozzle
Breakaway	Yes
Swivel	Yes
