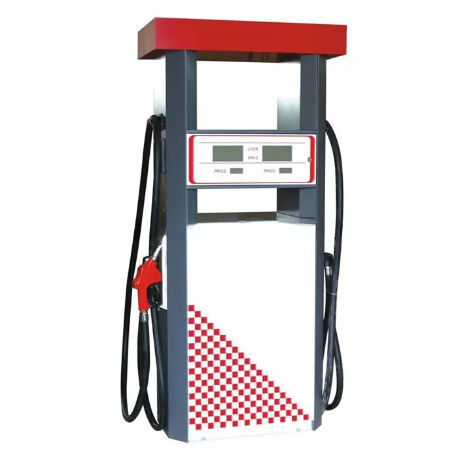

CWK50/90J×××H Series Fuel Dispenser

Name: CWK50/90J×××H Series Fuel Dispenser
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: CWK50/90J×××H
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: CE

Model Number: CWK50/90J×××H

Payment & Shipping Terms

Minimum Order Quantity: 2

Packaging Details: Wooden case applicable for export

Delivery Time: 35 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                    Fuel Dispenser for diesel refilling, Gasoline refilling pumps, gas staton pumps


Flow Rate:	5-50L/Min Or 5-90L/Min	Voltage:	AC380V±20% 50Hz Or 220VAC
Hose:	3/4'' 4M	Nozzle:	TD-20A Or MD-120 Automatic Nozzle

Flow Rate:	5-50L/Min Or 5-90L/Min
Voltage:	AC380V±20% 50Hz Or 220VAC
Hose:	3/4'' 4M
Nozzle:	TD-20A Or MD-120 Automatic Nozzle

Description

CWK50/90J×××H Series Fuel Dispenser

Technical Specification

Accuracy	±0.3%
Delivery Rate	5 ~ 50L/min; 5 ~ 90L/min
Vacuum	≥ 0.06 MPa
Register Range	0.00~999999.99 L
Totalizer Range	0.00~9999999999.99 L
Pre-settting Range	1.00~99999L
Rating Power	0.75KW
Power	AC380±20% 50/60±1Hz AC220 ±20% 50/60±1Hz
Ex-proof Motor	AC380±20% 50/60Hz 0.75Kw AC220 ±20% 50/60Hz 0.75Kw
Ambient Humidity	30%－90%
Temperature	-40℃~ 60℃

Stanard Components

Components	Model
Flow Meter	MJ-85S Flow Meter
Pump	ZCB-90 Gear Pump
Ex-proof Motor	AC380V±20% 50Hz
Hose	¾” 4M
Nozzle	TD-20A or MD-120 Automatic Nozzle

Option

Flow Meter & Pump	MJ-55 Flow Meter & ZCH-50 Gear Pump MJ-65 Flow Meter & ZYB-50 Gear Pump MJ-85S Flow Meter & QYB-240R Submersible Pump
Ex-proof Motor	AC220V±20% 50Hz or 60Hz
Nozzle	XIDE-80 or XIDE-120 Automatic Nozzle
Breakaway	Yes
Swivel	YesFuel Dispenser for diesel refilling
