MFD-50 Mobile Fuel Unit for Fuel Refilling

Name: MFD-50 Mobile Fuel Unit for Fuel Refilling
Brand: COWELL
SKU: MFD-40
Rating: 4.7 (129 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Certification: MFG. License

Model Number: MFD-40

Payment & Shipping Terms

Packaging Details: Wooden case applicable for export

Delivery Time: 15-25 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Flow Rate:	400-500L/Min	Flow Meter:	M-50H-1
Pump:	YB-65	Hose:	20m

Flow Rate:	400-500L/Min
Flow Meter:	M-50H-1
Pump:	YB-65
Hose:	20m

Description

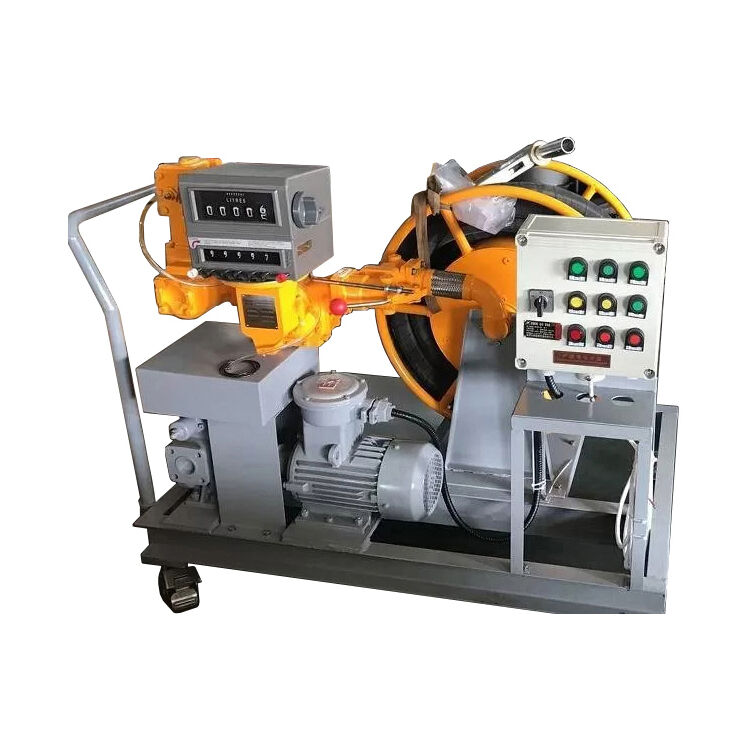

MFD-50 Mobile Fuel Unit for Fuel Refilling

Description

MFD series mobile fuel dispenser, containing bulk positive displacement flow-meter, vane pump & coupling drive Ex-proof Motor, Power Control Cabinet, hose & hose reels mechanical register, nozzles etc., applied in boat refuelling in marine, public transportation vehicles, big truck, trains, military vehicles, light aircraft, with advantage of high flow rate, long service life, high accuracy, convenience, easy to operate etc.

Technical Specification

Model	MFD-40 mobile fuel unit	MFD-50 mobile fuel unit	MFD-80 mobile fuel unit
Flow Rate	200L/min	400-500L/min	800-1000L/min
Flow meter	M-50-1 flow meter 2"	M-50-1 flow meter 2"	M-80-1 flow meter 3"
Pump	SUB-50 vane pump	YB-65 vane pump	YB-80 vane pump
Ex-proof Motor	1.5Kw,50Hz,380V	4Kw,50Hz,380V	7.5Kw,50Hz,380V
Ex-proof Motor	( 220V motor for option )	( 220V motor for option )	( 220V motor for option )
Hose	1.5", 20m	2", 20m	3", 20m
Nozzle/Hose Adaptor	1.5" automatic nozzle ( Hose Adapter for option)		Hose Adapter
Hose Reel	Manual Reel (Electric motor driven reel for option)
Preset Function	For option
Electric Register	For option
