JYM/L-P Mini Digital Flow Meter with Pulser

Name: JYM/L-P Mini Digital Flow Meter with Pulser
Brand: COWELL/OEM
SKU: JYM/P-1
Rating: 4.7 (130 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL/OEM

Certification: MFG. License

Model Number: JYM/P-1

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 3-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Mini Digital Flow Meter, JYM/L-P Digital Flow Meter, Digital Flow Meter with Pulser


Diameter:	15mm 1/2"	Type:	Oval Gear Meter
Flow Rate:	1-30L/Min	Pressure:	70Bar
Accuracy:	+-0.5%	Repeatibility:	0.2%

Diameter:	15mm 1/2"
Type:	Oval Gear Meter
Flow Rate:	1-30L/Min
Pressure:	70Bar
Accuracy:	+-0.5%
Repeatibility:	0.2%

Description

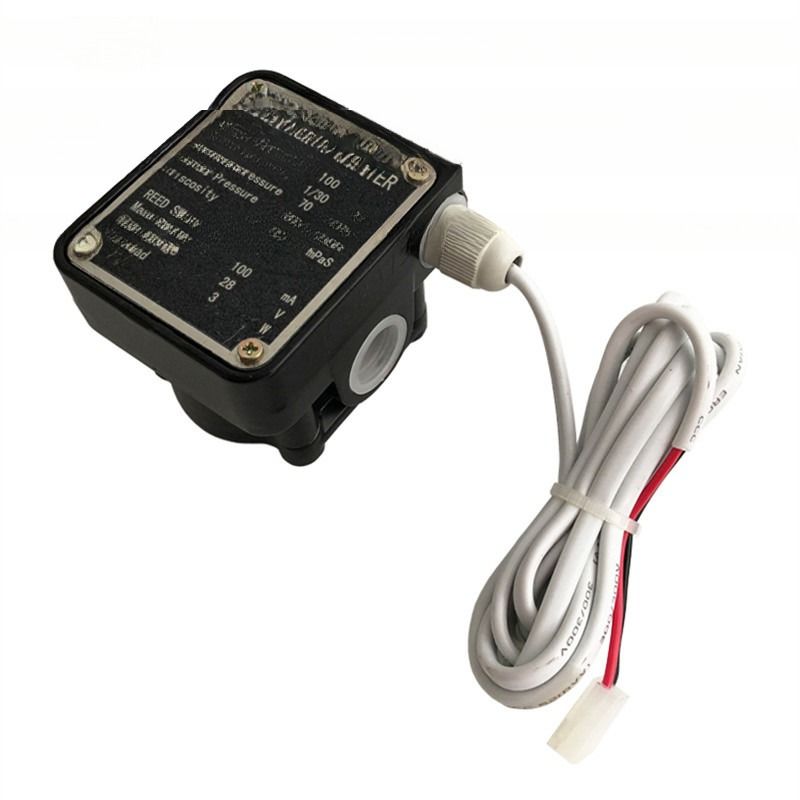

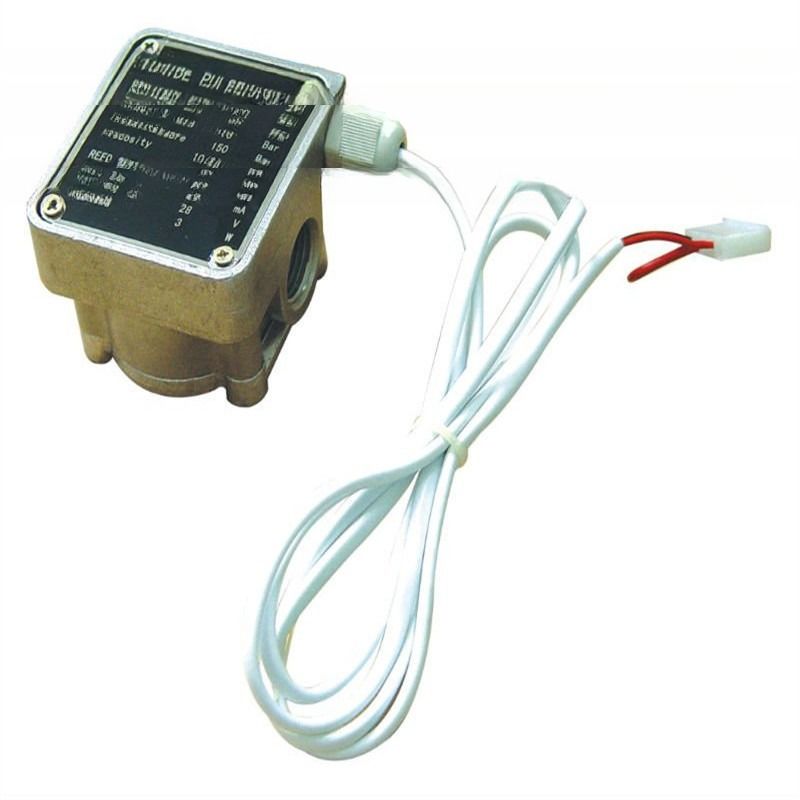

JYM/L-P Mini Digital Flow Meter with Pulser

Description

JYM/X-1 series Oval Gear Meter for controlling and measuring low, medium and high viscosity, such as fuel, lubrication oil with advantage of high precision and low pressure loss, compact, light weight design and easy installation.

JYM/L-1 Oval Gear Meter with LCD display, 5-digital sub-total, with floating point from 0.001 to 999.99; 8-digital non-resettable totalizer.

JYM/P-1 Oval Gear Meter with pulse output, reed switch built-in, signal channel output.

Technical Specification
Model	JYM/L-1
Inlet/Outlet	BSPF1/2"
Discharge Rate/Revolution	25ml/R
Accuracy	±0.5%
Flow Rate	1-30L/Min
Max. Operationg Pressure	70 Bar
Battery Power	2×1.5V
Medium	diesel, gasline, petrol, oil or other liquids
