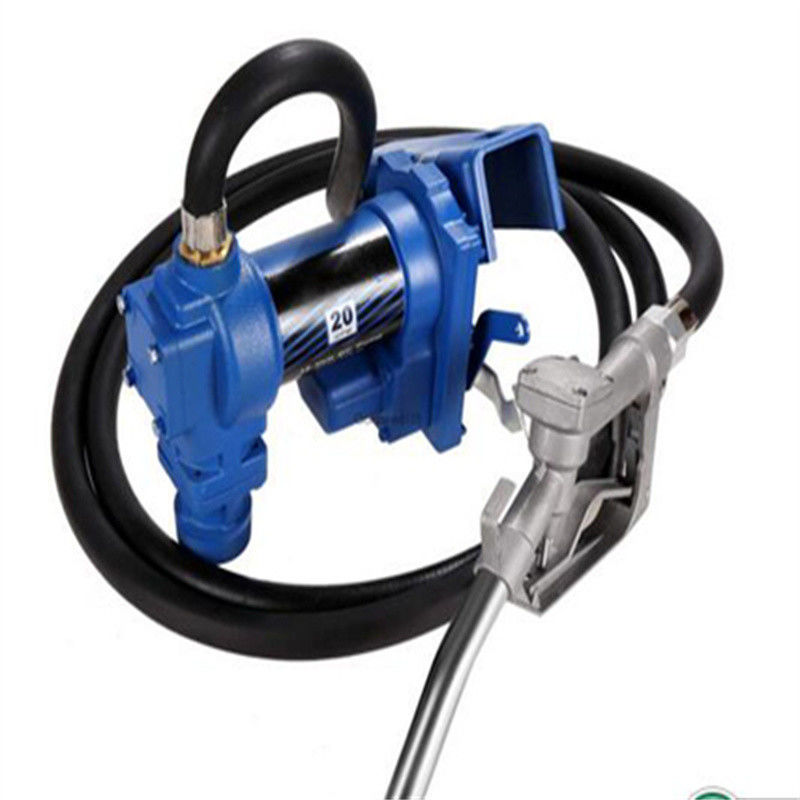

DYB50/75-DC12B Electric Transfer Pump, Explosion Proof

Name: DYB50/75-DC12B Electric Transfer Pump, Explosion Proof
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: DYB50/75-DC12B
Price: 450.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: COWELL

Model Number: DYB50/75-DC12B

Payment & Shipping Terms

Packaging Details: standard fuel transfer pump unite export package

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Explosion Proof Electric Transfer Pump, DC12B Electric Transfer Pump, DYB50/75 Electric Transfer Pump


Model:	DYB50/75-DC12B	Inlet::	1"NPT
Outlet::	1"NPT	Flow Meter:	20GPM(76LPM)
Explosion-proof Motor:	1/4HP	Threaded Tank Adapter:	2'' NPT
Body Material:	Cast Iron

Model:	DYB50/75-DC12B
Inlet::	1"NPT
Outlet::	1"NPT
Flow Meter:	20GPM(76LPM)
Explosion-proof Motor:	1/4HP
Threaded Tank Adapter:	2'' NPT
Body Material:	Cast Iron

Description

DYB50/75-DC12B Electric Transfer Pump, Explosion Proof

Description

Used for diesel, gasoline, kerosene, mineral spirits, Stoddard solvent and heptane
Explosion-proof permanent magnet motor with thermal overload protection
Built-in strainer, bypass valve
Ball bearing construction, no lubrication required
3/4” and 1" Hose; 1" manual nozzle
Nozzle boot that protects against dirt and contamination
2" threaded base for tank openings
Corrosion-Proof section pipe
Rain proof, water proof
30-minute duty cycle/not for continuous operation Options :
FM-40G meter in gallons or FM-120 meter in liters
Automatic nozzle

Techcnical Specification

Model	DYB50-DC12B	DYB75-DC12B
Body Material	Cast Iron	Cast Iron
Maximum flow rate	15GPM(57LPM)	20GPM(76LPM)
Explosion-proof motor	1/4HP	1/4HP
Max. Working Temperature	-26-660C	-26-660C
Inlet	1"NPT	1"NPT
Outlet	3/4"NPT	1"NPT
Threaded tank adapter	2"NPT	2"NPT
Nozzle hanger	Yes	Yes
