LPG Nozzle for Auto Gas Filling

Name: LPG Nozzle for Auto Gas Filling
Brand: Shanghai Cowell Machinery Co., Ltd.
SKU: LPG Nozzle
Price: 65.00 USD
Availability: InStock

Product Details

Brand Name: COWELL

Model Number: LPG Nozzle

Payment & Shipping Terms

Minimum Order Quantity: 5 pieces

Packaging Details: Carton for LPG nozzle

Delivery Time: 1-7 working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                    Auto Gas Filling LPG Nozzle, LPG nozzle, LPG equipment


Inlet:

3/4" Or 1" BSPF/NPT

Max. Operating Pressure:

350PSI

Inlet:	3/4" Or 1" BSPF/NPT
Max. Operating Pressure:	350PSI

Description

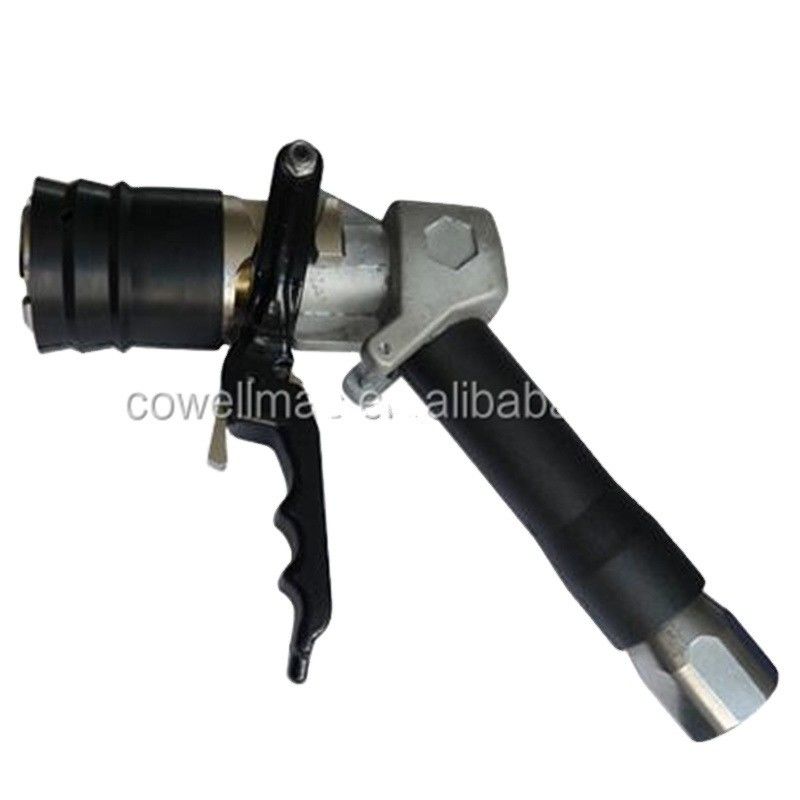

LPG Nozzle for Auto Gas Filling

Entire fueling operation with single action operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand. HammerLock technology maximum durability. Designed specifically for frequent coupling and uncoupling. Economic design insulated handle protects operator from temperature effects created by high flowing LP gas. Minimal force required to engage nozzle. Durable construction heavy duty brass, aluminum and stainless steel construction provides excellent corrosion resistance in the harsh fueling environment. Easy use. Incorporates with a single plane 360^o inlet swivel.

Technical Specification

Inlet	BSPT/NPT3/4” & 1”
Max.Operating Pressure	350 PSI
LPG Discharge on Disconnect	4.3cc
Temperature Range	-40～85℃ (-40～185°F)
Coupling Style	Italian Style
Body Material	Aluminum
Internal Components Material	Brass/Steel
External Components Material	Brass/Stainless Steel

Package Data

Packaging	10pcs/Carton
Net Weight	20Kgs
Gross Weight	21Kgs
Size	36×32×32cm
