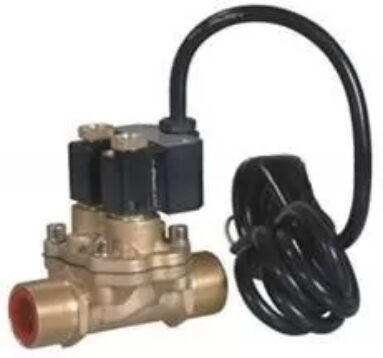

MSF Series Solenoid Valve

Name: MSF Series Solenoid Valve
Brand: COWELL
SKU: MSF-20F/T;MSF-25F/T
Rating: 4.6 (117 reviews)

Product Details

Place of Origin: China

Brand Name: COWELL

Certification: MFG. License

Model Number: MSF-20F/T;MSF-25F/T

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            Solenoid Valve, Brass Solenoid Valve, Solenoid Valve for Fuel


Diameter:	3/4", 1" & 1.5"	Voltage:	220VAC, 24VDC, 12VDC
Ambient Temperature:	-40~55 C Degree	Connection:	Flange, NPT/BSPF
Medium:	Gasoline, Diesel, Kerosene Etc

Diameter:	3/4", 1" & 1.5"
Voltage:	220VAC, 24VDC, 12VDC
Ambient Temperature:	-40~55 C Degree
Connection:	Flange, NPT/BSPF
Medium:	Gasoline, Diesel, Kerosene Etc

Description

MSF Series Solenoid Valve

Precise action, reliable, long service.
Diaphragm of main valve has capability of anti-corrosion and resisting -40℃ low temperature.
Special stainless steel magnetic material, never rusts and generates remanent magnetism.
Class F loop with good insulation.
Anti-Explosion Class:EXdⅡBT4
When main valve shuts off, work pressure 0.3～0.4MPa, flow rate is 3-3.5L/min.

Technical Specification

Model	Diameter	Connection	Flow Rate (L/min)	Work Pressure (MPa)	Voltage (V)	Ambient Temperature (℃)	Medium Temperature (℃)
MSF-20F	20mm/3/4"	Flange	50	0.035～0.45	AC220V 50Hz DC24V/ 12V	-40℃～55℃	-40℃～65℃
MSF-20T	20mm/3/4"	Thread M33×1.5	50
MSF-25F	25mm/1"	Flange	85
MSF-25T	25mm/1"	Thread M33×1.5	85
