LPG Gas Leaking Detector & Gas Monitor System

Name: LPG Gas Leaking Detector & Gas Monitor System
Brand: COWELL
SKU: BH Series
Rating: 5 (119 reviews)

Product Details

Brand Name: COWELL

Model Number: BH Series

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 7-15 Working days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                    Standardized LPG Gas Detector, 1000MM LPG Gas Detector, Industrial LPG Gas Detector


Signal Input:

4~20mA And RS485

Signal Output:

Two Lines RS485（MODBUS）

Signal Input:	4~20mA And RS485
Signal Output:	Two Lines RS485（MODBUS）

Description

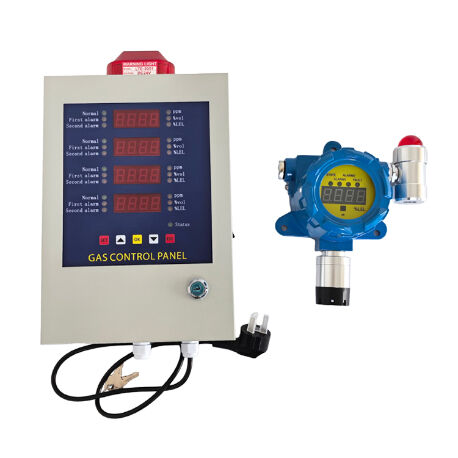

LPG Gas Leaking Detector & Gas Monitor System

BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Technical Specification

Product	BH-60 fixed gas detector/transmitter
Explosion Proof Grade	Exd ⅡC T6 Gb
Response Time	≦30S
Power Supply	DC24V±10%
Working Temperature	-20℃～50℃
Output Current	4-20mA
Working Humidity	0-95%RH
Contact Output	Free contact output, max power 1kW
Single Input	4~20mA and RS485
Installation	Wall-mounted
Shell Material	Aluminum
Dimension	190x150x95mm(L×W×H)

BH-50 Gas Monitor System is a multipoint controller system. It is used for detecting gas concentration in the air. The system could connect to detectors for different gases in the same time. The system adopts MCU as control unit, excellent gas sensor with high sensitivity and fast response. It will give visual and audible alarm when the gas concentration reach or exceed the presetting alarm level to remind you to take effective actions in time and it could also start the ventilation fan and other equipment to prevent from accident and explosions.

Technical Specification

Product	BH-50 Gas controller
Channel	Single channel,two channels,four channels
Power Supply	AC220V±10% 50Hz
Consumption	≦10W
Signal Input	4~20mA and RS485
Single Output	Two lines RS485(MODBUS)
Working Temperature	-10℃～50℃
Working Humidity	0-95%RH (no dew)
Contact Output	Free contact output, max power 1kW
Installation	Wall-mounted
Dimension	380x210x80mm(L×W×H)
